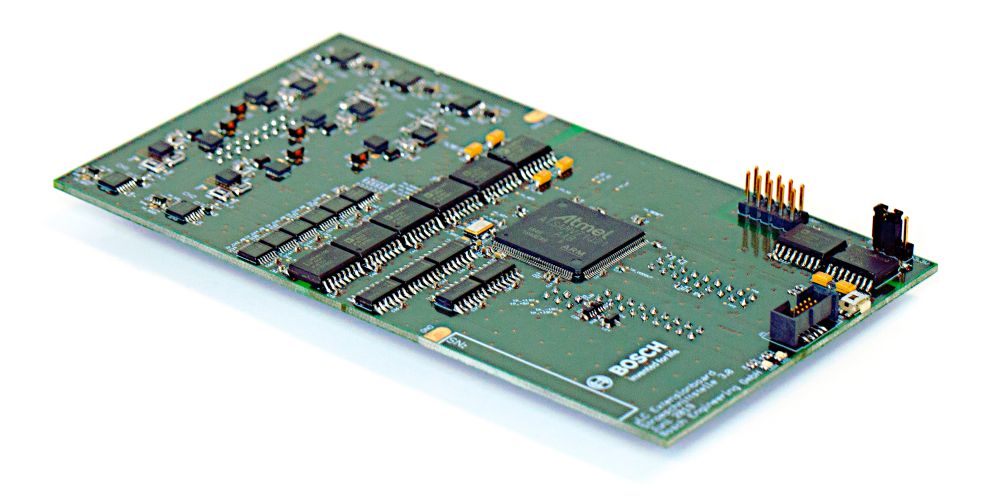

The Expansion Board Current Loop Interface extends the functions of the µLC Test System without intervening the software and without activating additional mechanisms. The numbered outputs are available for this purpose. Using the five provided channels it is possible to simulate up to five independent sensors. With integrated Lua scripting and the provided API it is possible to create automated tests.
Downloads
Features
- All common wheel speed sensors can be simulated
- Simulation of gear speeds possible
- Speed calculation based on wheel circumference
- Current limits freely adjustable from 0 mA to 40 mA
Technical Specifications
TS |
|
|
|---|---|---|
Engine speed | -3,000 to 12,000 rpm | |
Local pattern / teeth | 48 to 60 |
|
Signal duration forwards | 35 to 55 µs |
|
Signal duration backwards | 80 to 100 µs |
|
Gaps | 0 to 10 |
|
Prefixed bit | 35 to 45 | (de)activatable |
Duty Cycle | 737,000 µs |
|
Stand still signal duration | 1,340 to 1,540 µs | |
Stand still signal | 150,000 µs | (de)activatable |
AK |
|
|
|---|---|---|
Engine speed | -3,125 to 3,125 rpm | |
Local pattern / teeth | 48 to 60 |
|
Parity | Even / odd parity |
|
LR-Bit |
| (de)activatable |
LM0-Bit |
| (de)activatable |
LM1-Bit |
| (de)activatable |
LM2-Bit |
| (de)activatable |
Stand still signal | 150,000 µs |
|
PWM-i |
|
|
|---|---|---|
Engine speed | -2,500 to 2,500 rpm | |
Local pattern / teeth | 48 to 60 |
|
Duration LR | 35 to 55 µs | (de)activatable |
Duration DR_L | 80 to 100 µs |
|
Duration DR_R | 170 to 190 µs |
|
Duration DR_L_EL | 350 to 370 µs | (de)activatable |
Duration DR_R_EL | 710 to 730 µs | (de)activatable |
Stand still signal duration | 1,430 to 1,450 µs | |
Stand still signal period | 737,000 µs |
|
PWM-s |
|
|
|---|---|---|
Engine speed | -5,000 to 5,000 rpm | |
Local pattern / teeth | 48 to 60 |
|
