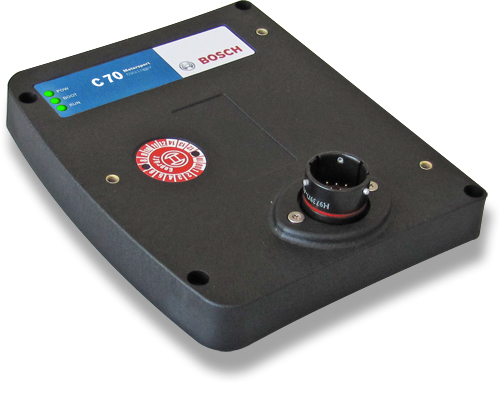

The data logger C 70 integrates a programmable data logging system for motorsport applications for a very competitive price. Additional input devices can be connected via Ethernet and CAN buses.
Data Analysis Software WinDarab is available free of charge as “WinDarab V7 free” on our website. The logger can be upgraded to a 2nd logging partition of 4 GB (e.g. for long term recording).
For quick data transfer from the car e.g. during pit stop, data copy to a USB stick is available as an option. The stick is connected to the wiring harness for the C 70.
The device comes with 4 analog and 4 speed inputs as standard; further 12 analog inputs are available as optional upgrade.
- Downloads
- Features
- Application
- Technical Specifications
- Communication
- Installation Notes
- Ordering Information
- Dimensions
- Upgrades
- Legal Restrictions
Downloads
Features
- Cutting-edge 667 MHz Dual Core Processor
- Recording on USB flash drive (opt.)
- Supports GPS lap trigger, pre-dated lap time etc.
- High programming flexibility using mathematical functions and conditional channels
Application
Processor | 667 MHz Dual Core |
Converters | 10 kHz 12 bit AD converters with digital low pass filter |
Internal power source | Li/Ion capacitor |
Configurable math channels |
|
User configurable CAN in/out messages | |
Online data compression |
|
Internal logger
| |
Logging rates
| |
LTE Ethernet telemetry support, GSM telemetry support | |
Technical Specifications
Mechanical Data
Size | 151 x 126 x 25.5 mm |
Weight | 450 g |
Protection Classification | IP54 to DIN 40050, Section 9, Issue 2008 |
Operating temperature internal | -20 to 85°C |
Max. vibration | Vibration profile 1 (see Downloads or www.bosch-motorsport.com) |
Electrical Data
Supply voltage | 5 to 18 V |
Inputs
4 x analog channels, additional 12 optional |
0 to 5 V input range |
12 bit resolution |
switchable pull up resistor for all ANA_IN |
4 x Hall-effect or DF11 wheel speed inputs, switchable |
Sensor Supplies and Screens
2 x Sensor supply 5 V ± 1 % (250 mA) |
1 x Sensor supply 10 V ± 1 % (250 mA) |
1 x Sensor supply U_Bat (250 mA) |
4 x Sensor ground |
Connectors and Wires
Motorsport connector on logger | AS216-35PN |
Mating connector | F02U.000.466-01 |
Pin Configuration
Pin | Name | Comment | Status |
|---|---|---|---|
1 | KL_31 |
| Incl. |
2 | KL_15 |
| Incl. |
3 | KL_30 |
| Incl. |
4 | Rev_In_3 | Hall or DF11 switchable | Incl. |
5 | Rev_In_1 | Hall or DF11 switchable | Incl. |
6 | KL_31 |
| Incl. |
7 | CAN_2_L | CAN speed selectable | Incl. |
8 | Ethernet_2_TXP |
| Incl. |
9 | Ethernet_2_TXN |
| Incl. |
10 | Sens_Power_12V | over current protected | Incl. |
11 | Rev_In_4 | Hall or DF11 switchable | Incl. |
12 | Rev_In_2 | Hall or DF11 switchable | Incl. |
13 | Laptrigger_In |
| Incl. |
14 | CAN_2_H | CAN speed selectable | Incl. |
15 | CAN_1_H | CAN speed selectable | Incl. |
16 | Ethernet_2_RXP |
| Incl. |
17 | Sens_Gnd_4 | fused | Incl. |
18 | Sens_Power 5V | over current protected | Incl. |
19 | ANA_IN_3 | 3.01 kOhm switchable | Incl. |
20 | ANA_IN_4 | 3.01 kOhm switchable | Incl. |
21 | Time_Sync | connection to Bosch ECU | Incl. |
22 | CAN_1_L | CAN speed selectable | Incl. |
23 | Com_screen | Ethernet and USB screen | Incl. |
24 | Ethernet_2_RXN |
| Incl. |
25 | Sens_Gnd_3 | fused | Incl. |
26 | Sens_Power 5V | over current protected | Incl. |
27 | ANA_IN_7 | 3.01 kOhm switchable | Opt. |
28 | ANA_IN_1 | 3.01 kOhm switchable | Incl. |
29 | USB_Device_DP | to Bosch USB stick | Opt. |
30 | RS232_TX_Telemetry | Transmit Telemetry data | Incl. |
31 | Ethernet_1_TXP |
| Incl. |
32 | Sens_Gnd_2 | fused | Incl. |
33 | Sens_Power_10V | over current protected | Incl. |
34 | ANA_IN_8 | 3.01 kOhm switchable | Opt. |
35 | ANA_IN_10 | 3.01 kOhm switchable | Opt. |
36 | USB_Device_Gnd | to Bosch USB stick | Opt. |
37 | USB_Device_DN | to Bosch USB stick | Opt. |
38 | RS232_RX_Telemetry | Receive Telemetry data | Incl. |
39 | Ethernet_1_TXN |
| Incl. |
40 | Sens_Gnd_1 | fused | Incl. |
41 | ANA_IN_11 | 3.01 kOhm switchable | Opt. |
42 | ANA_IN_9 | 3.01 kOhm switchable | Opt. |
43 | RS232_TX_GPS | Transmit GPS data | Incl. |
44 | ANA_IN_16 | 3.01 kOhm switchable | Opt. |
45 | USB_Device_Power | to Bosch USB stick | Opt. |
46 | Ethernet_1_RXP |
| Incl. |
47 | ANA_IN_12 | 3.01 kOhm switchable | Opt. |
48 | ANA_IN_6 | 3.01 kOhm switchable | Opt. |
49 | ANA_IN_2 | 3.01 kOhm switchable | Incl. |
50 | ANA_IN_13 | 3.01 kOhm switchable | Opt. |
51 | ANA_IN_15 | 3.01 kOhm switchable | Opt. |
52 | Ethernet_1_RXN |
| Incl. |
53 | ANA_IN_5 | 3.01 kOhm switchable | Opt. |
54 | RS232_RX_GPS | Receive GPS data | Incl. |
55 | ANA_IN_14 | 3.01 kOhm switchable | Opt. |
Communication
Installation Notes
Maintenance Interval: 220 h or a maximum of two years |
Ordering Information
Data Logger C 70
Order number: F02U.V02.302-02
Rugged USB flash drive
Order number: F02U.V03.534-01
Connector for USB flash drive on car loom side
Order number: F02U.002.996-01
Adapter cable to PC USB-Port
Order number: F02U.V01.343-01
Software Options
CCP/XCP_MASTER
Order number: F02U.V02.213-01
FULL_LOG_2
Order number: F02U.V02.305-01
IO_EXTENS
Order number: F02U.V02.205-01
DATA_USB
Order number: F02U.V03.476-01
Accessories
Vehicle Loom Basic
Order number: F02U.V02.735-01
Bench Loom
Order number: F02U.V02.349-01

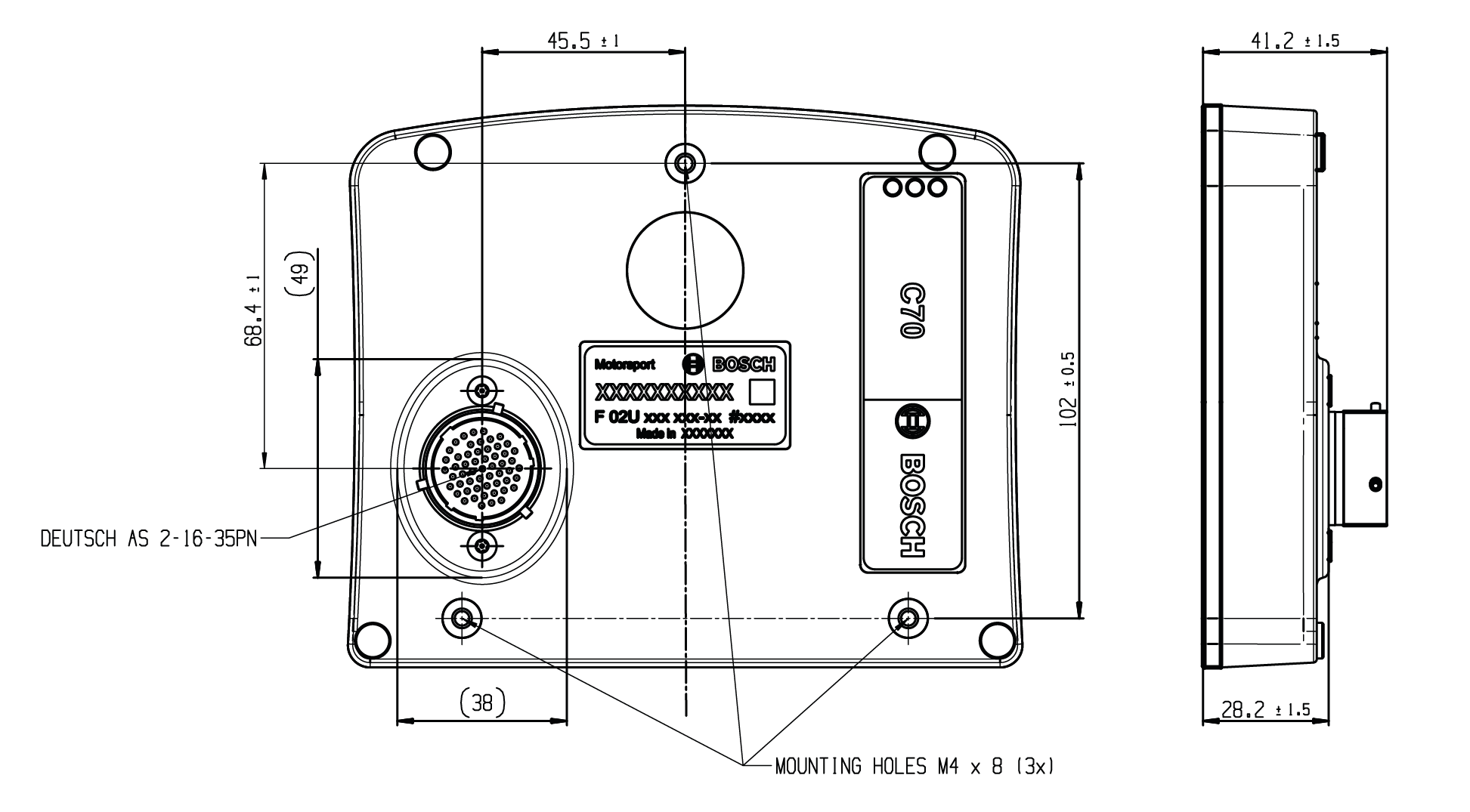

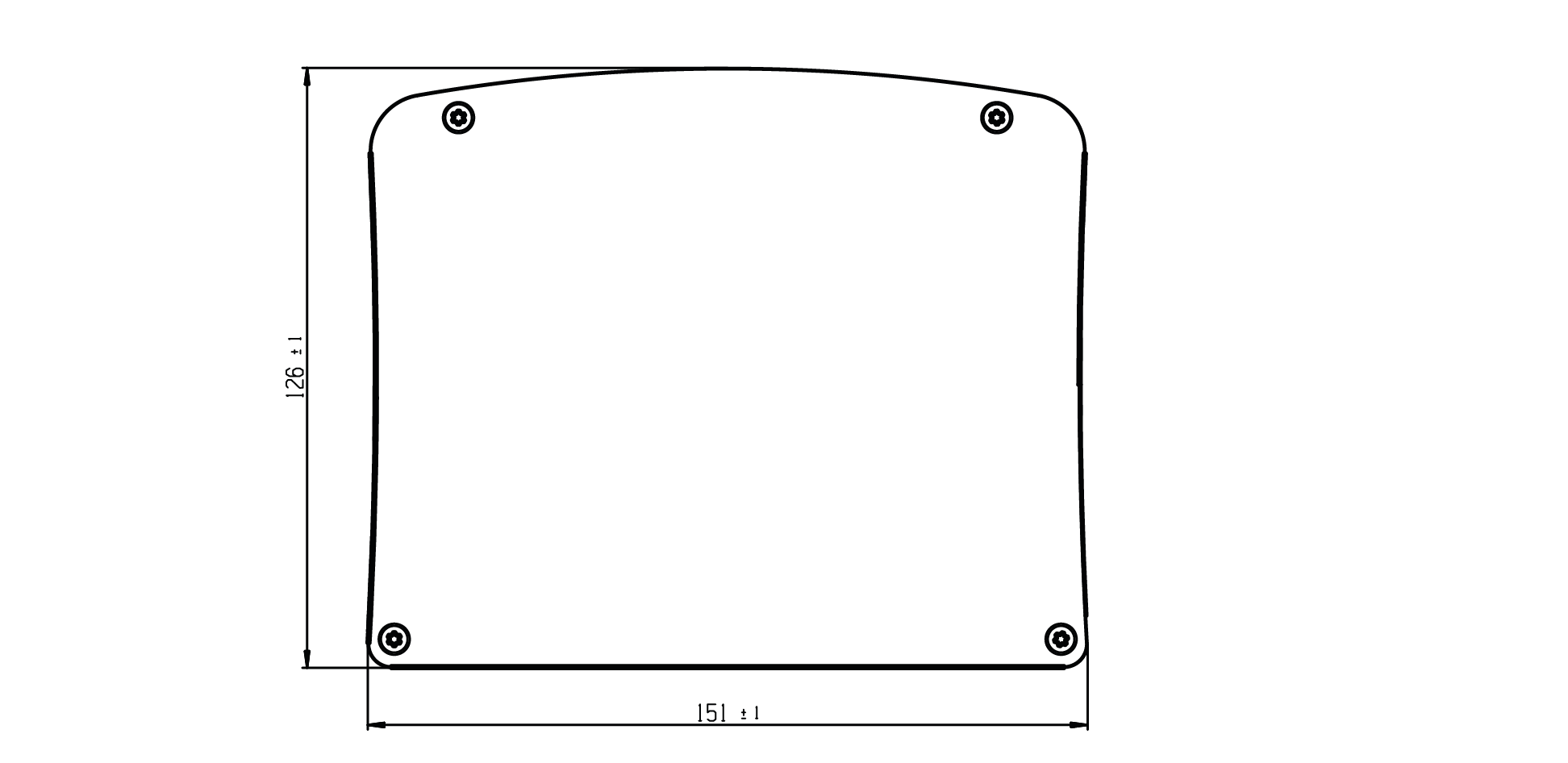

Dimensions
Upgrades
CCP/XCP_MASTER
Enables CCP/XCP master functionality to request data from foreign devices via CAN/CCP protocol or XCP over Ethernet (UDP). |
FULL_LOG_2
4 GB memory on Recording 2 |
IO_EXTENS
Additional 12 analog input channels |
DATA_USB
Data copy to USB flash drive |
Legal Restrictions
The sale of this product in Mexico is prohibited.
Due to embargo restrictions, sale of this product in Russia, Belarus, Iran, Syria, and North Korea is prohibited.
