Engine Control Unit MS 7.8

High pressure injection

Integrated power stages for triple injection and use of:

• 4 cylinders up to 14,600 rpm
• 6 cylinders up to 9,700 rpm
• 8 cylinders up to 7,300 rpm

(for supply voltages >10 V, depending on injection types and pressure ranges)

HP package for flat and V-engines inclusive (2nd Bank, fuel control valve 2, external cylinder 9-12)

Low pressure injection

• Max. 12 cylinders up to 16,000 rpm, high impedance injectors only

Outputs can be used alternatively as low side switches 2.2 A with fast decay

Ignition

• 8 integrated power stages up to 20 A
• alternatively, up to 12 drivers for use with external power stages

Physical engine model for fast application

• determine engine load by throttle position or air pressure signals
• mixture control and basic ignition guided by main signal relative load rl
• Subsystems pit speed-, launch-, rpm-limiter and ASR are integrated inside torque control
• Separated power cut functions to assist several gear cut systems
• Diagnostics
• Integrated safety strategy for 2 electronic throttle controls

Integrated support of manual gearshift

Electronic throttle control

Variable Valve Timing VVT

Turbo control

Traction control

Launch control

LTE Ethernet telemetry support

Internal logger

• FULL_LOG_1 (4 GB memory on Recording 1) enabled
• PERF_LOG_1 (16 GB memory on Partition 1) optional
• FULL_LOG_2 (4 GB memory on Recording 2) enabled
• DATA_USB (Data copy to USB flash drive) enabled

Logging rates

• Usage of all features: 400 kB/s
• Primary logging use case: >800 kB/s
• Logging data download rate: up to 6.2 MB/s

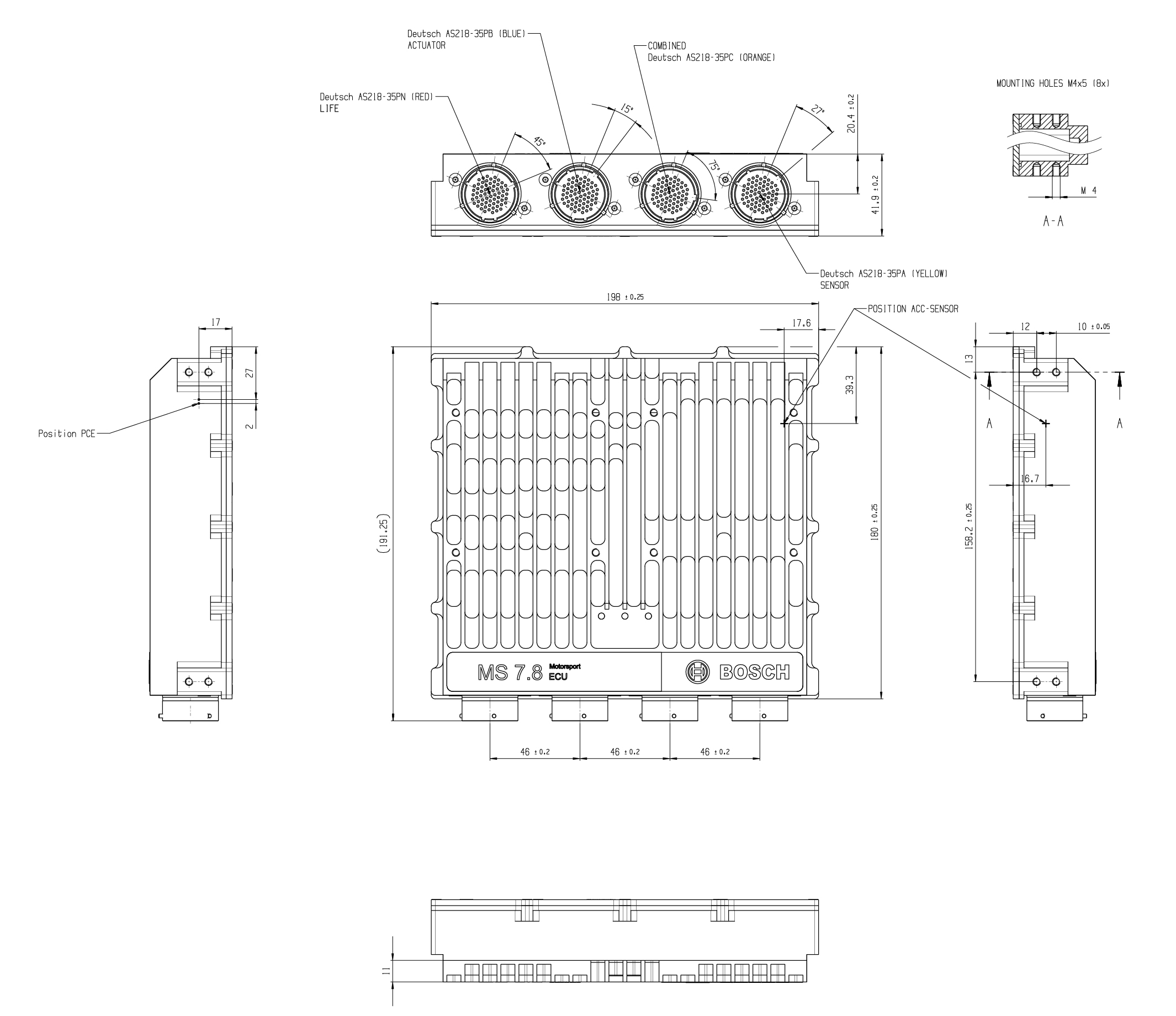

Milled aluminum housing

4 motorsport connectors, 264 pins in total

Size without connectors

198 x 180 x 42 mm

Weight

1,560 g

Protection Classification

IP67

Temp. range (at internal sensors)

-20 to 85°C

Max. Vibration

Vibration Profile 1 (see Downloads or www.bosch-motorsport.com)

Power supply

6 to 18 V

CPU

Dual Core 1 GHz, FPGA

46 analog inputs

8 analog/digital/SENT inputs (shared)

12 digital inputs

4 x switchable Hall/inductive

4 x Hall

4 x switchable Hall/DF11

21 internal measurements

8 x ECU Current (Sensor Supply)

8 x ECU Voltage (Sensor Supply)

1 x Boost Voltage

1 x Booster Supply Voltage

1 x Dynpwr Supply Voltage

1 x Supply Current

1 x USB Current

18 function related inputs

8 x fast ADC for combustion chamber pressure input

2 x thermocouple exhaust gas temperature sensors (multi-type)

2 x Lambda interfaces for LSU 4.9 sensor types (LSU-ADV version available, see Ordering Information)

1 x digital switch for engine ON/OFF

1 x digital input for beacon receiver

4 x knock sensors

8 x sensor supply 400 mA, switchable 5 V/Vbat with voltage and current sensing

8 x sensor grounds

2 x sensor screens

38 function related outputs

High Pressure Injection

2 x high pressure pump with fuel control valve

8 x high pressure injection for magnetic injectors

Low Pressure Injection

12 x 2.2 A low pressure injection for high impedance injectors

Ignition

12 x ignition control, IGBT or BJT, coils with integrated power stage, or max. 8 cylinders and coils without integrated power stage, 20 A

2 x 8.5 A H-bridge reserved for electronic throttle

2 x 3 A pwm lowside switch for Lambda heater

15 freely configurable outputs

2 x 8.5 A H-bridge

2 x 4 A pwm lowside switch

6 x 3 A pwm lowside switch

4 x 2.2 A pwm lowside switch

1 x 1 A pwm lowside switch low dump resistant

5 output signals

5 x MUX outputs for internal signals like flywheel, knock signals, cylinder pressure

Configuration
Configurable flywheel- and trigger disc geometries
Selectable links between functions and in- or outputs

Function documentation
Automatically created during code generation

MatLab code generation
Support for customer own MatLab function development

Data Analysis tool WinDarab V7

System Configuration tool RaceCon 2.7.0.9 or later

LIFE (red)

AS618-35SN

Actuator (blue)

AS618-35SB

Combined (orange)

AS618-35SC

Sensor (yellow)

AS618-35SA

Inspection services recommended after 220 h or 24 months, internal battery to be replaced during service.

Depending on your experiences with calibration of ECUs we recommend calibration support from Bosch Motorsport.

Please remember that the mating connectors and the programming interface cable are not included and must be ordered separately.
