The ABS M5 Kit Clubsport is developed for the operation in front-, rear- or 4-wheel drive vehicles. A generic wiring harness is included in the kit. This enables us to provide the kit with a significantly reduced price in comparison to the standard ABS M5 Kit with individual loom.
The ABS M5 Kit Clubsport is specifically adapted for motorsport use. Individual car parameters like e.g. vehicle weight, vehicle track, wheel weights, wheel circumferences, wheel base or number of increments can be calibrated with software free of charge. Please contact your Bosch Motorsport dealer for further information.
Downloads
Features
- Suitable for front-wheel, rear-wheel and four-wheel drive vehicles
- Generic wiring harness to fit all engine bay and front foot well locations for the hydraulic module
- Same ABS hardware as standard ABS M5 Kit
Technical Specifications
Mechanical Data
Hydraulic unit | |
Serial housing, dust- and damp-proof | |
Vibration damped circuit board | |
38 pin connector | |
2 hydraulic valves per wheel | |
2 brake circuits (front and rear) | |
2 hydraulic high pressures pumps | |
2 hydraulic accumulators 5 cm3/each | |
Standard fittings | 2 x master cylinders M12 x 1 |
Size | 122 x 110 x 122 mm |
Weight | 1,910 g |
Operating temperature | -30 to 130°C |
Max. shock | 50 g less than 6 ms |
Max. working speed | 360 km/h = 100 m/s = 224 mph |
Pressure Medium
DOT 4 brake fluid |
DOT 5.1 brake fluid |
Electrical Data
Supply voltage | 10 to 16 V |
Max. peak voltage | 35 V for 200 ms |
Power consumption Pump | 230 W |
Power consumption Relay | 170 W |
Power consumption Electronics | 8 W |
Inputs
4 active wheel speed DF11i, DF11S or DF11V |
Brake pressure (front brake circuit / rear brake circuit) |
Longitudinal acceleration, lateral acceleration, yaw rate (MM5.10 sensor) |
11 adjustment settings |
ABS function can be deactivated (Pos. 12) |
Outputs
ABS warning light (MIL) |
TTL wheel speed signal FL / FR / RL / RR |

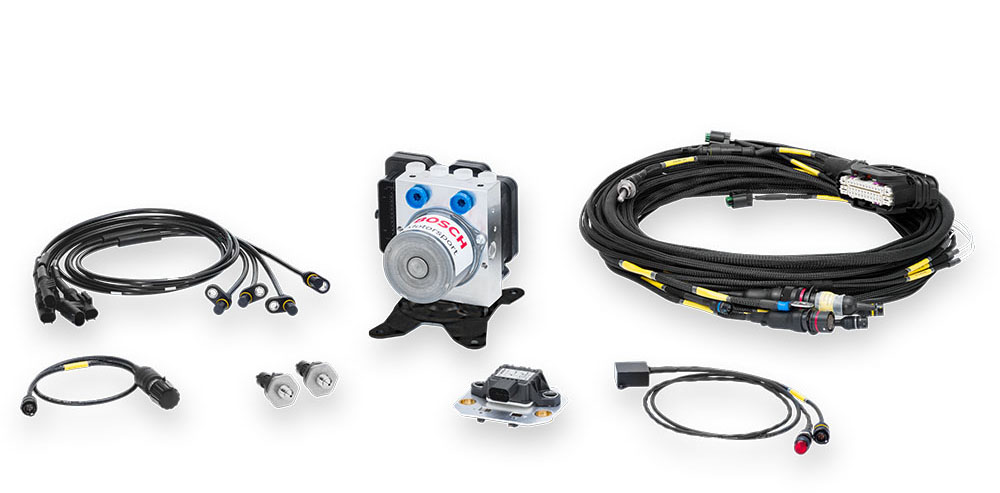

Content of Kit and Weights
Hydraulic unit | 1,910 g |
2 pressure sensors | 40 g/each |
Yaw/acceleration sensor | 60 g |
12 position function switch | 50 g |
4 wheel speed sensors DF11 standard | 50 g/each |
ABS warning light (MIL) | 50 g |
Standard wiring harness | 1,540 g |
Mounting and vibration-damping boards | 80 g |
Mounting board for hydraulic unit | 212 g |
Communication
Ordering Information
ABS M5 Kit Clubsport
DF11i, 500 kbaud
Order number: F02U.V05.291-01
ABS M5 Kit Clubsport
DF11i, 1 Mbaud
Order number: F02U.V05.292-01
ABS M5 Kit Clubsport
DF11S, 500 kbaud
Order number: F02U.V05.293-01
ABS M5 Kit Clubsport
DF11S, 1 Mbaud
Order number: F02U.V05.294-01
ABS M5 Kit Clubsport
DF11V, 500 kbaud
Order number: F02U.V05.295-01
ABS M5 Kit Clubsport
DF11V, 1 Mbaud
Order number: F02U.V05.296-01
Com Interface MSA-Box II
Not mandatory if available
Order number: F02U.V00.327-03
Legal Restrictions
The sale of this product in Mexico is prohibited.
Due to embargo restrictions, sale of this product in Russia, Belarus, Iran, Syria, and North Korea is prohibited.
