The HDEV 5.2 is a high pressure injector, which is developed to be used as a port or a direct injector.
The function of the HDEV 5.2 is both to meter out the fuel and to obtain a well-defined mixture of fuel and air. It is an inward opening solenoid injector which is optimized regarding very short opening and closing times which ensures a very stable linearity at short injection times.

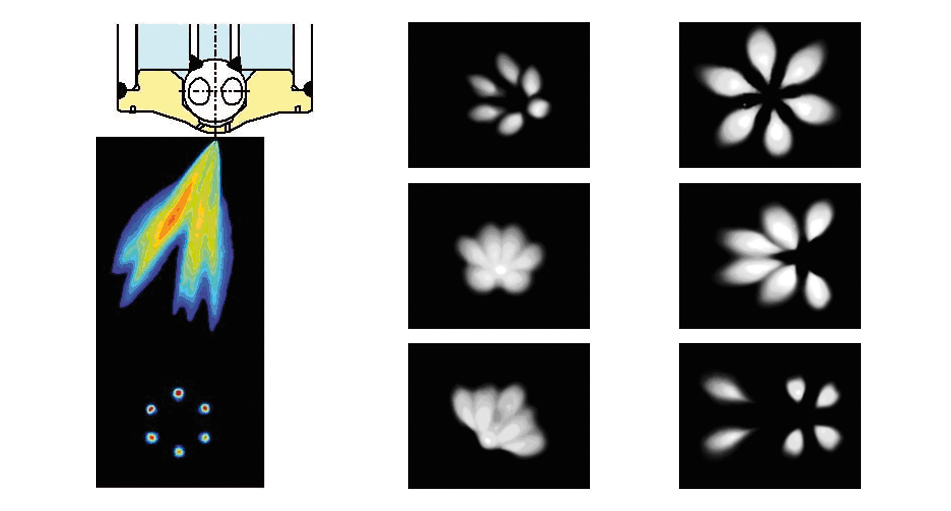

The benefit of this injector is a high spray variability concerning spray angle and spray shape. Also the flow rate can be defined in a big range. Bosch offers the spray targeting design according to the individual customer requirements.
If your application conditions will not match the listed performance data, please ask for consultancy at Bosch Motorsport. In addition to the specific designed sample, Bosch offers cost effective production HDEV 5.2 on request.
- Downloads
- Features
- Application
- Technical Specifications
- Installation Notes
- Ordering Information
- Dimensions
- Legal Restrictions
Downloads
Features
- Flow rate at 100 bar: up to 2,000 g/min (n-heptane)
- Max. 350 bar (higher on request)
- Up to 20 holes
- Spray angle 8 to 20°
Application
Application at 100 bar (typical) | 308 to 2,000 g/min |
Fuel input | Top-feed injector |
Fuel | Gasoline |
Operating pressure | Up to 350 bar (higher on request) |
Operating temperature range | -31 to 130°C |
Storage temperature range | -40 to 70°C |
Max. vibration | 600 m/s² |
Technical Specifications
Mechanical Data
Weight w/o wire | 68 g |
Diameter body | 20.7 mm |
Diameter nozzle | 7.5 mm |
Length | 87 mm |
Flow rate at 100 bar (n-heptane) | up to 2,000 g/min |
Number of holes | 4 to 20 holes |
Spray type | Multi hole |
Spray angle overall | 110° (typical) |
Spray angle single beam | 8 to 20° |
Static flow tolerance | ±4 % |
Dynamic flow tolerance | ±6 % at ti = 1.5 ms |
Leakage | ≤2.5 mm³/min at 23°C |
Electrical Data
Booster supply | 65 V |
Booster current | 13.4 A |
Booster time | 480 μs |
Power supply | 12 V |
Pick up current | 9.4 A |
Pick up time | 704 μs |
Hold power supply | 12 V |
Hold current | 3.7 A hysteresis 0.8 A |
Coil resistance | 1,500 mOhm (ambient temp.) |
Connectors and Wires
Mating connector Compact | D261.205.359-01 |
Connector Jetronic (wire) | D261.205.288-01 |
Connector motorsport (wire) | On request |
Pin 1 | Pos |
Pin 2 | Gnd |
Installation Notes
|
The injector has to be supplied by a Bosch Motorsport Power Stage Unit (e.g. HPI 5 or HPI 1.16). |
|
Listed electrical values may vary according to the application. |
|
The injector can be cleaned (mechanically or chemically), if the tip will not be damaged. |
|
Do not use supersonic cleaning. |
Ordering Information
HP Injection Valve HDEV 5.2
Order number: on request
Dimensions
Legal Restrictions
The sale of this product in Mexico is prohibited.
Due to embargo restrictions, sale of this product in Russia, Belarus, Iran, Syria, and North Korea is prohibited.
