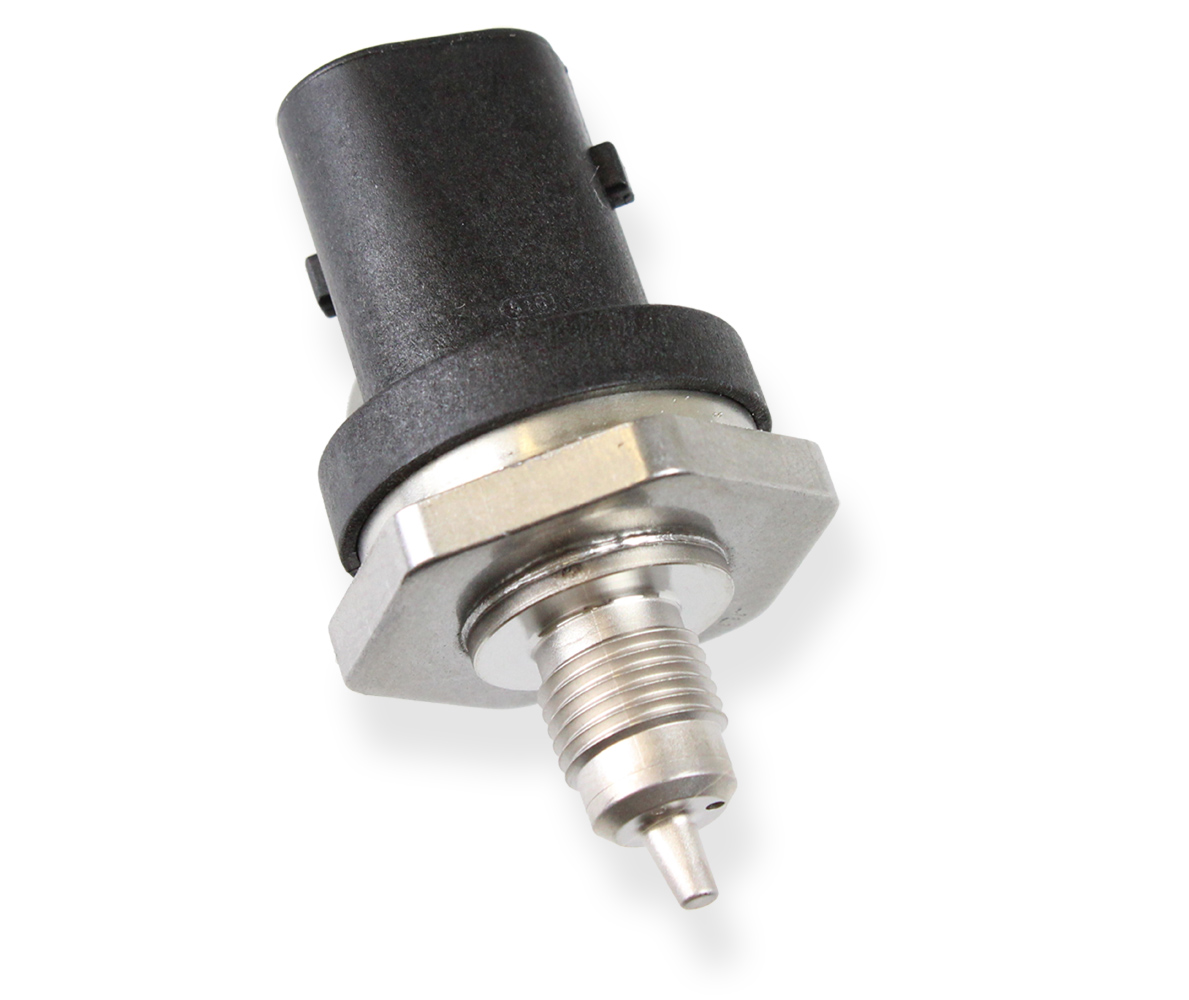

Pressure Sensor Combined PST-F 1

Application 1

0 to 10 bar (rel)

Application 2

-40 to 150°C

Reference

Relative

Max. pressure

20 bar max 15 min

Burst pressure (static)

40 bar

Operating temp. range

-40 to 150°C
(160°C max 250 h)

Storage temp. range

-30 to 60°C

Fuel compatibility

Engine oils, most gasoline and Diesel fuels

Max. vibration

80 m/s² at 20 to 260 Hz
60 m/s² at 260 to 520 Hz

Vibration testing

according to DIN EN ISO 60068-2-6 (2008-10)

Amplitude of deflection

s=0,35 mm at 70 to 147 Hz

Amplitude of acceleration a

a=300 m/s² at 147 to 2,000Hz

Male thread

M10x1

Weight without wire

38 g

Wrench size

27 mm

Installation torque

24 Nm

Sealing

Sealed cone

Power supply U_S

4.75 to 5.25 V

Max power supply U_S max

16 V (18 V, 1 h max)

Full scale output U_A

0.5 to 4.5 V U_S ratiometric

Current I_S

12.5 mA

Response time Uout when Us is switched-on t10/90

2.0 ms

Jump response time to pressure changes Uout

0.8 ms

Compensated range

-40 to 150°C

Tolerance (FS) at U_S

+/-1.2 % at 0 to 100°C

Sensitivity

400 mV/bar at U_S = 5 V

Offset

500 mV at U_S = 5 V

Response time t10/90

9 s (meas. in oil, 20 to 100°C)

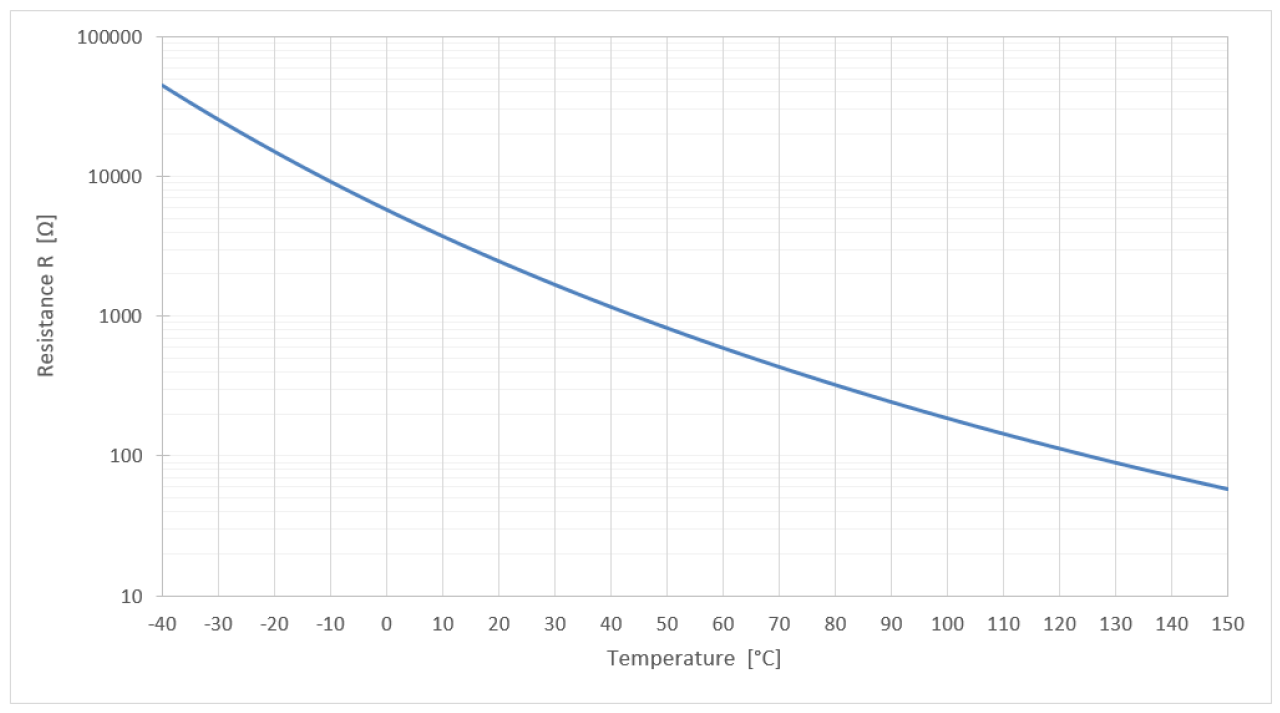

T [°C]

R [Ohm]

-40

44,864

-30

25,524

-20

15,067

-10

9,195

0

5,784

10

3,740

20

2,480

30

1,683

40

1,167

50

824

60

594

70

434.9

80

323.4

90

244

100

186.6

110

144.5

120

113.3

130

89.9

140

71.9

150

58.1

Connector

Bosch Trapezoid

Mating connector

F02U.B00.751-01

Pin 2

Pressure Signal

Pin 3

Power Supply

Pin 4

Ground

Pin 5

Temperature Signal

The sensor can be connected directly to most control units.

For temperature measurement please use a pull-up resistor with an optimal value of 4.6 kOhm.

The sensor has a protection for overvoltage, reverse polarity and short-circuit.

Please find further application hints in the offer drawing and free download of the sensor configuration file (*.sdf) for the Bosch Data Logging System at our homepage.
