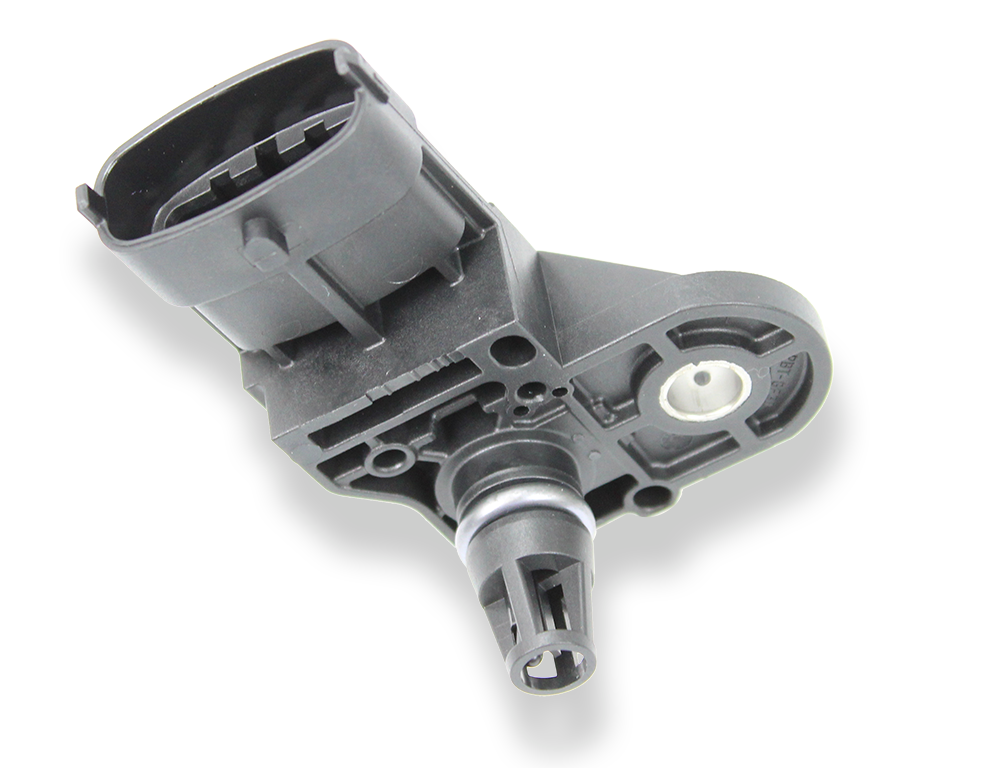

This sensor is designed to measure absolute air pressure, especially the air box pressure of gasoline or Diesel engines plus temperature.
An integrated circuit combines a piezo-resistive sensor element and electronic systems for signal-amplification and temperature-compensation. The output of the sensor is an analog, ratio metric signal.
Two different pressure ranges are available (0.1 to 1.15 bar or 0.2 to 3 bar).
- Downloads
- Features
- Application
- Technical Specifications
- Installation Notes
- Ordering Information
- Dimensions
- Legal Restrictions
Downloads
Features
- Pressure: 0.1 to 1.15 bar or 0.2 to 3 bar
- Temperature: -40 to 150°C or -40 to 140°C
- Power supply: 5 V
- Weight: 24 g
Application
|
Application 1 |
0.1 to 1.15 bar or 0.2 to 3 bar (a) |
|
Application 2 |
-40 to 130°C |
|
Reference |
Absolute |
|
Max. pressure |
5 bar |
|
Operating temp. range |
-40 to 130°C |
|
Media temp. range |
-40 to 130°C |
|
Storage temp. range |
0 to 40°C |
|
Max. vibration |
According to ISO 16750-3 |
Technical Specifications
Variations
| PST 1 (0.1 to 1.15 bar) | PST 3 (0.2 to 3 bar) |
Tolerance (FS) at US = 5 V | ± 0.016 bar | ± 0.030 bar |
Tolerance (FS) | ± 1.52 % | ± 1.07 % |
Sensitivity | 4,048 mV/bar | 1,518 mV/bar |
Offset | -4.76 mV | 96.43 mV |
Mechanical Data
Mounting | M6 |
Fitting | 12.05 ± 0.8 mm |
Weight w/o wire | 24 g |
Sealing | O-ring 7.59 x 2.62 mm |
Electrical Data
Power supply US | 4.75 to 5.25 V |
Max. power supply | 16 V |
Full scale output UA at 5 V | 0.4 to 4.65 V |
Current IS | 9 mA |
Characteristic 1
Response time T10/90 | 1 ms |
Compensated range | 10 to 85°C |
Tolerance (FS) at US = 5 V | Please see variations |
Tolerance (FS) | Please see variations |
Sensitivity | Please see variations |
Offset | Please see variations |
Characteristic 2
T [°C] | R [Ohm] |
-40 | 45,303 |
-30 | 26,108 |
-20 | 15,458 |
-10 | 9,395 |
0 | 5,895 |
10 | 3,791 |
20 | 2,499 |
25 | 2,056 |
30 | 1,706 |
40 | 1,174 |
50 | 833.8 |
60 | 595.4 |
70 | 435.6 |
80 | 322.5 |
90 | 243.1 |
100 | 186.6 |
110 | 144.2 |
120 | 112.7 |
130 | 89.28 |

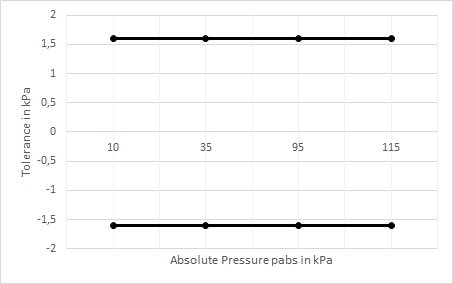

Tolerance 0.1 to 1.15 bar

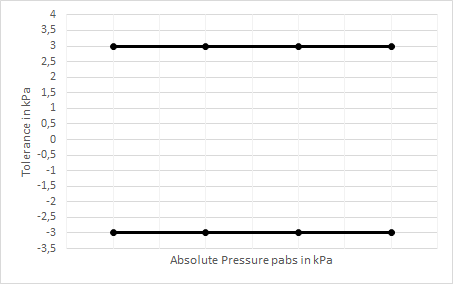

Tolerance 0.2 to 3 bar

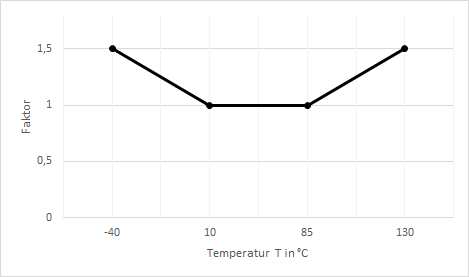

Expansion of Tolerance
Connectors and Wires
Connector | Bosch Compact |
Mating connector | D261.205.360-01 |
Pin 1 | Ground |
Pin 2 | Temperature Signal |
Pin 3 | Power Supply |
Pin 4 | Pressure Signal |
Various motorsport and automotive connectors are available on request. | |
Installation Notes
The PST 1/PST 3 is designed for engines using ROZ95, ROZ98, M15, E22 and Diesel. |
The sensor can be connected directly to most control units. |
To avoid noise, an ECU-input circuit with a RC-low pass filter (tau = 2 ms) is recommended. |
Use engine oil (5W40) as O-Ring grease (no silicone based grease). |
Avoid miss-pinning (max. 5 minutes at I = 0.3 A). |
Please find further application hints in the offer drawing and free download of the sensor configuration file (*.sdf) for the Bosch Data Logging System at our homepage. |
To avoid damage caused by condensate the maximum mounting position from vertical is +-60°. |
Safety Note
The sensor is not intended to be used for safety related applications without appropriate measures for signal validation in the application system. |
Ordering Information
Pressure Sensor Combined PST 1
0.1 to 1.15 bar
Order number: 0261.230.333
Pressure Sensor Combined PST 3
0.2 to 3 bar
Order number: 0261.230.280

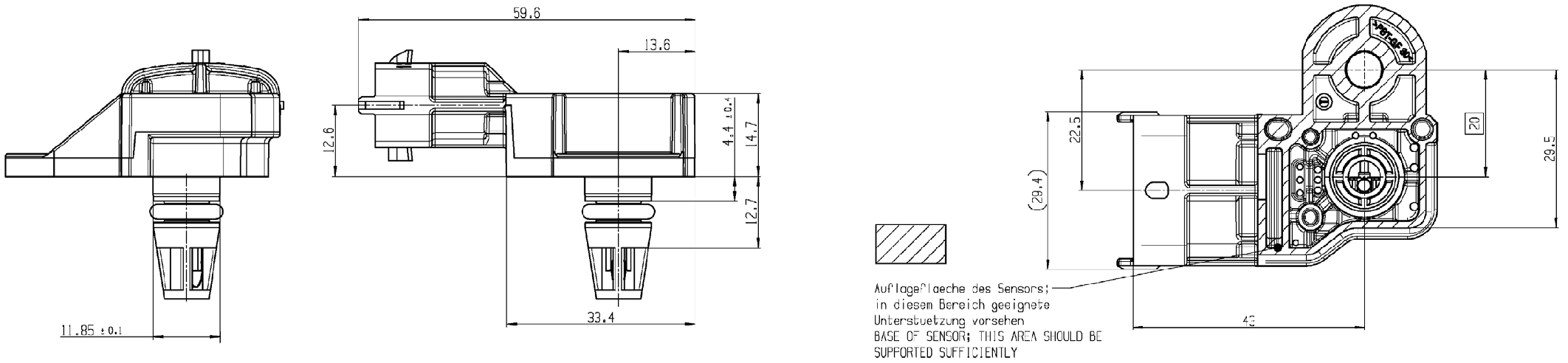

Dimensions
Legal Restrictions
Due to embargo restrictions, sale of this product in Russia, Belarus, Iran, Syria, and North Korea is prohibited.
