This sensor is designed to measure temperatures up to 300°C of oil, water, fuel or air. This signal is used as a control value for engine control units or as a measurement value which is logged in a data acquisition system.
The NTC-sensing element has a negative temperature coefficient. This means, that with increasing temperature the conductivity rises and the resistance decreases. To improve a good protection against the ambient temperature, the housing is made of stainless steel and partly filled with an isolation-paste.
The main benefit of the sensor is a very compact design and its very short response time.
- Downloads
- Features
- Application
- Technical Specifications
- Installation Notes
- Ordering Information
- Dimensions
- Legal Restrictions
Downloads
Features
- Application: -55 to 300°C
- Accuracy at 25°C: ± 0.3°C
- Accuracy at 100°C: ± 1.3°C
- Male thread: M5
- Nominal resistance: 10 kOhm ± 1 % (at 25°C)
Application
|
Application |
-55 to 300°C |
|
Storage temperature range |
0 to 100°C |
|
Bio fuel compatibility |
- |
Technical Specifications
Mechanical Data
Male thread | M5 |
Wrench size | 8 mm |
Installation torque | 8 Nm |
Weight w/o wire | 6 g |
Sealing | O-Ring 4 x 1 mm |
Electrical Data
Characteristic | NTC |
Nominal resistance at 25°C | 10 kOhm ± 1 % |
Characteristic
Accuracy at 25°C (homogeneous cond.) | ± 0.3°C |
Accuracy at 100°C (homogeneous cond.) | ± 1.3°C |
Response time tau 63 in still water | < 4 s |

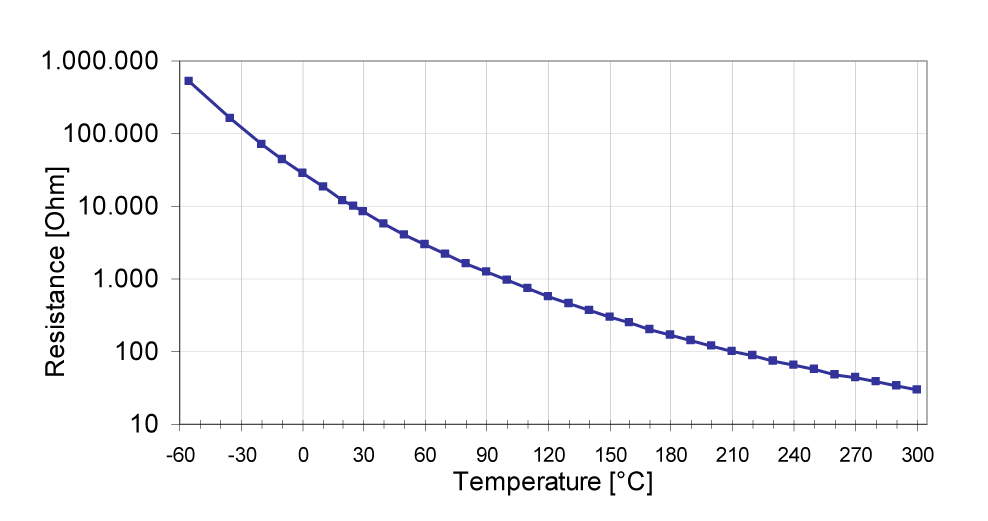

Characteristic Application
T [°C] | R [Ohm] |
-55 | 519,910 |
-35 | 158,090 |
-20 | 71,668 |
-10 | 44,087 |
0 | 27,936 |
10 | 18,187 |
20 | 12,136 |
25 | 10,000 |
30 | 8,284 |
40 | 5,774 |
50 | 4,103 |
60 | 2,967 |
70 | 2,182 |
80 | 1,629 |
90 | 1,234 |
100 | 946.6 |
120 | 578.1 |
140 | 368.8 |
160 | 244.4 |
180 | 167.6 |
200 | 118.5 |
220 | 86.08 |
240 | 64.08 |
260 | 48.76 |
280 | 37.86 |
300 | 29.94 |
Connectors and Wires
Connector | ASL606-05PN-HE |
Mating connector | F02U.000.231-01 |
Pin 1 | - |
Pin 2 | Sig- |
Pin 3 | Sig+ |
Pin 4 | - |
Pin 5 | - |
Various motorsport and automotive connectors are available on request. | |
Wire size | AWG 24 |
Wire length L | 15 to 50 cm |
Please specify the required wire length with your order. | |
Installation Notes
The NTC M5-HS can be connected directly to most control units using a pull-up resistance (typically 1 or 3 kOhm) . |
Any mounting orientation is possible. |
Please find further application hints in the offer drawing at our homepage. |
Free download of the sensor configuration file (*.sdf) for the Bosch Data Logging System at our homepage. |
Safety Note
The sensor is not intended to be used for safety related applications without appropriate measures for signal validation in the application system. |
Ordering Information
Temperature Sensor NTC M5-HS
Order number: F02U.V00.510-01

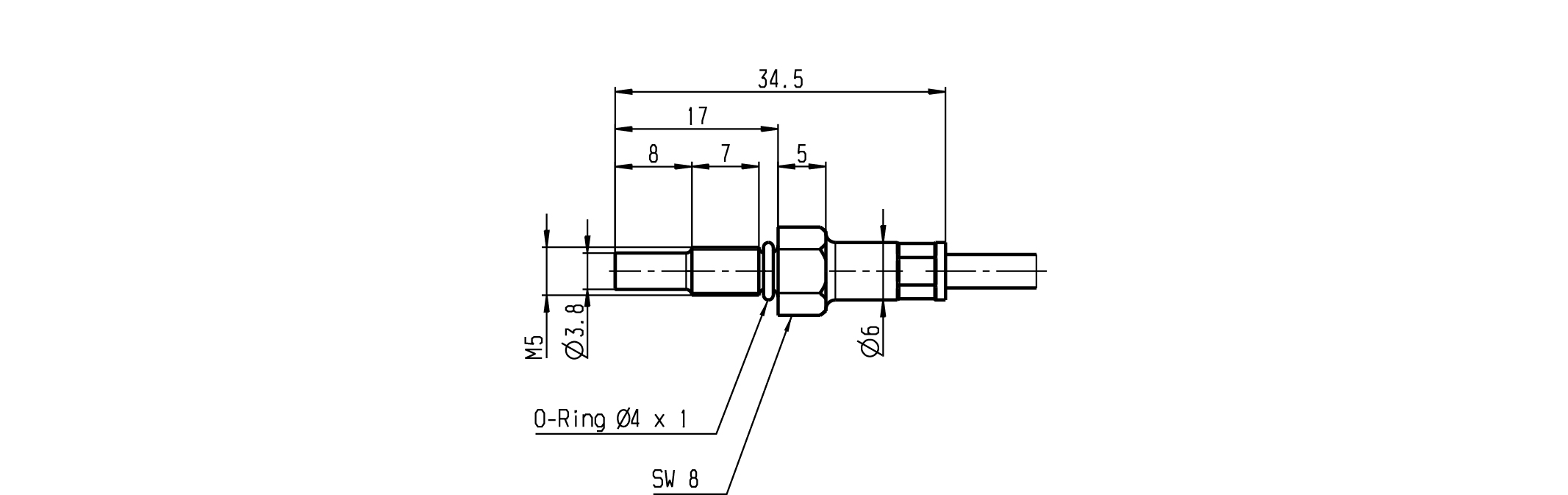

Dimensions
Legal Restrictions
Due to embargo restrictions, sale of this product in Russia, Belarus, Iran, Syria, and North Korea is prohibited.
