The Digital Multichannel Potentiometer Expansion Board extends the functionality of the µLC Test System by seamless integration into an existing device. It offers four independently configurable, galvanically isolated digital potentiometers with a wide range of resistance and excellent accuracy. All four channels feature individual protection by an automatic overcurrent shutdown with automatic retry.
- Downloads
- Features
- Application
- Technical Specifications
- Ordering Information
- Dimensions
- Legal Restrictions
Downloads
Features
- 4 independent, galvanically isolated, AC-capable channels
- Wide range of resistance: 50 Ohm to 500 kOhm
- High accuracy and 19 Bit Resolution

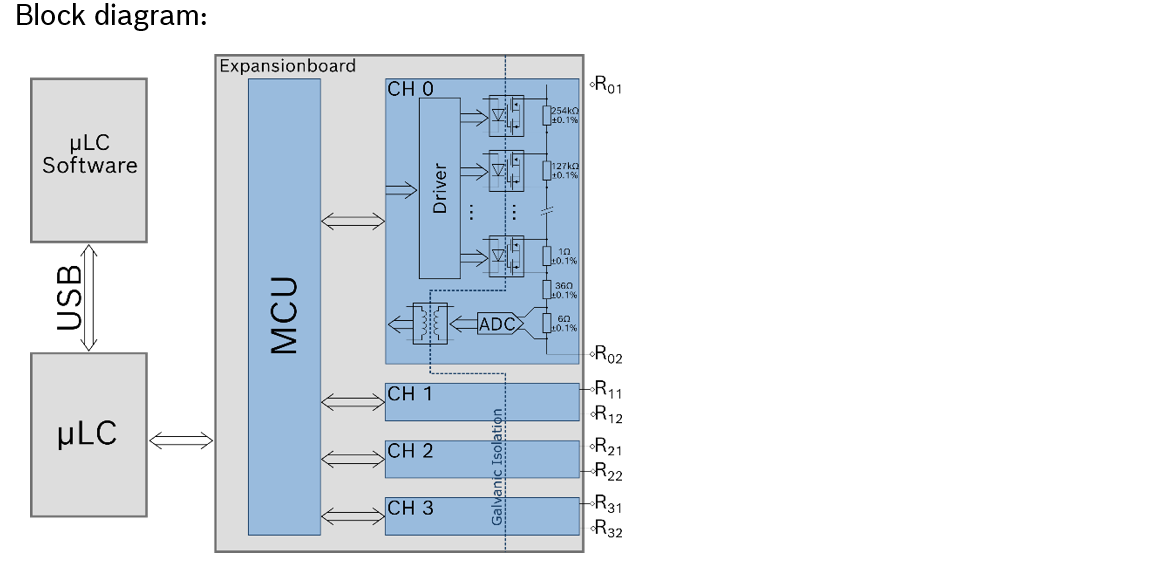

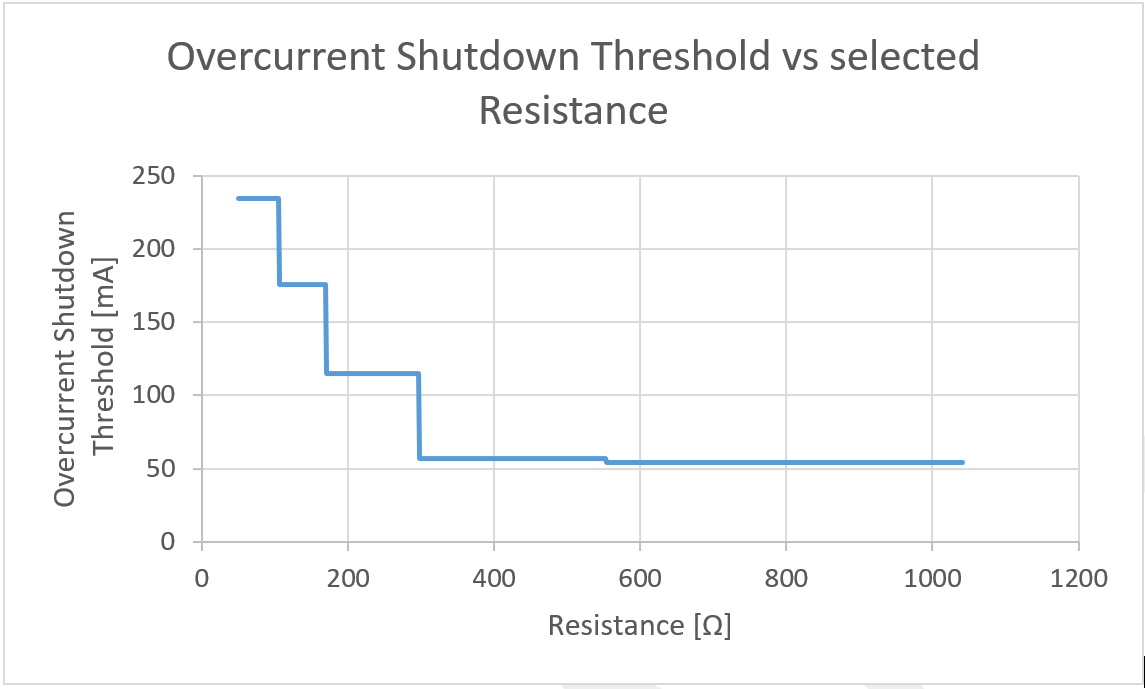

- Overcurrent protection
- Non-mechanical solid-state switches
Application
Emulating Sensor Data |
Designed to work for example with the sensor interface L9966 (FlexI) |

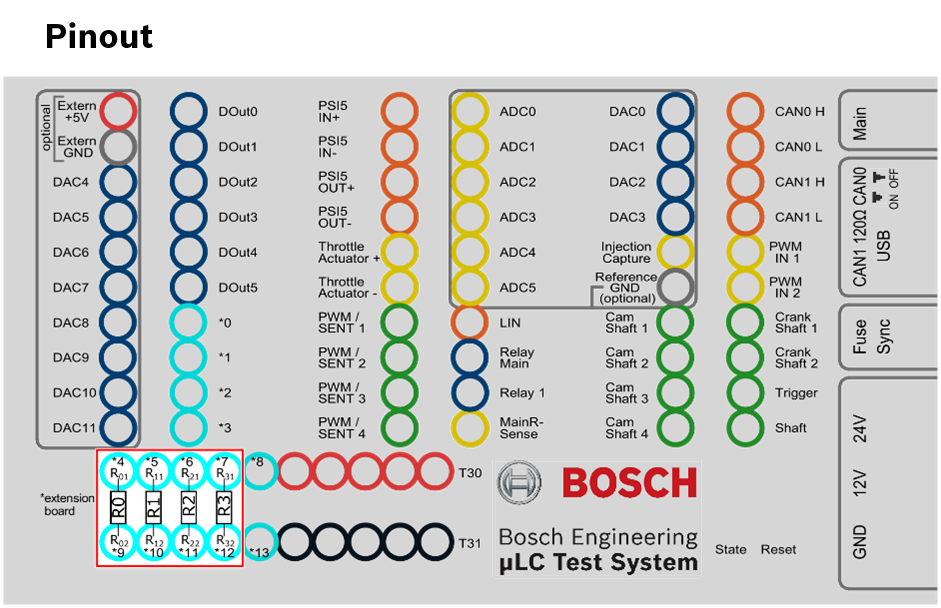

Technical Specifications
Maximum voltage on any input referred to µLC-GND | -24 to 24 V |
Electrical Characteristics
Parameter | Value | Unit |
|---|---|---|
Minimum Resistance | 50 | Ohm |
Maximum Resistance | 500 | kOhm |
Step Size | 1 | Ohm |
Resolution | 19 | Bit |
Accuracy
Parameter | Value |
|---|---|
Entire Range | ±0.5 Ohm ±1 % |
Ordering Information
Expansion Board Digital Multichannel Pot.
Order number: F02U.V03.129-01
Dimensions
Legal Restrictions
The sale of this product in Mexico is prohibited.
Due to embargo restrictions, sale of this product in Russia, Belarus, Iran, Syria, and North Korea is prohibited.
