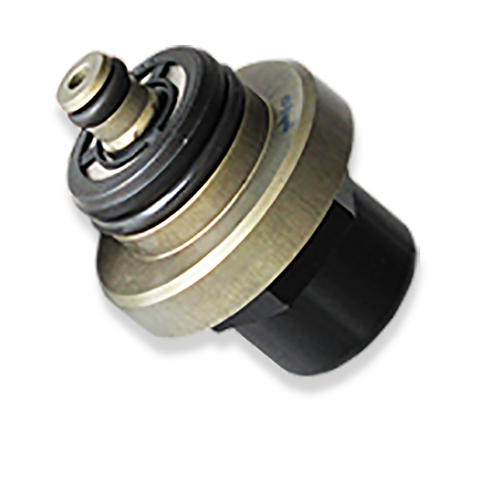

Fuel pressure regulators are used to maintain constant fuel pressure at the injection valves.
We offer this regulator for gasoline as well as for methanol applications.
The main benefit of this regulator includes a higher pressure range and a higher return flow rate in comparison to the production type regulators.
- Downloads
- Features
- Application
- Technical Specifications
- Installation Notes
- Ordering Information
- Dimensions
- Legal Restrictions
Downloads
Features
- 5 to 10 bar
- 30 to 400 l/h reflow
- Adjusted at 105 l/h
- Aluminum housing
- All versions Methanol compatible
Application
|
Pressure range |
See ordering information |
|
Reflow quantity |
30 to 400 l/h |
|
Fuel compatibility |
Gasoline, E85, M100 |
|
Operating temperature |
-40 to 120°C |
|
Storage temperature |
-40 to 100°C |
|
Max. vibration |
<600 m/s² at 5 to 250 Hz |
|
Valve leakage |
Qleck [cm3/min] ≤ 9 (pneumatic) at p [kPa] = 0.8 x Pnom |
Technical Specifications
Variations
|
Please see Ordering Information |
Mechanical Data
|
Diameter |
38.1+0.1-0.2 mm |
|
Weight |
Ca. 61 g |
|
Mounting |
Fastening with a clip |
Connectors and Wires
|
Connector supply |
Diam. 25 mm, O-ring 25x2.5 |
|
Connector reflow |
Diam. 9.1 mm, O-ring 5x2.5 |
Installation Notes
Never run the regulator without the integrated filter. |
Please oil O-rings lightly with clean and silicone free engine oil before you install the regulator. |
Please make a leak test after you have installed the regulator. |
When the pressure regulator is removed and will be reused, the O-rings must be tested for fractures. |
Operation of the pressure regulator with a medium other than gasoline is not allowed. |
Using the FPR Adaptor light F02U.V02.248-01, you can rebuild the regulator an inline type. |
This pressure regulator is not designed for in-tank mounting. |
Ordering Information
Fuel Pressure Regulator Mini 2
Pressure Range 5.0 bar
Order number: F02U.V02.166-01
Fuel Pressure Regulator Mini 2
Pressure Range 6.0 bar
Order number: F02U.V02.168-01
Fuel Pressure Regulator Mini 2
Pressure Range 7.0 bar
Order number: F02U.V02.170-01
Fuel Pressure Regulator Mini 2
Pressure Range 8.0 bar
Order number: F02U.V02.171-01
Fuel Pressure Regulator Mini 2
Pressure Range 10.0 bar
Order number: F02U.V02.172-01
FPR Adaptor light
Order number: F02U.V02.248-01
Dimensions
Legal Restrictions
The sale of this product in Mexico is prohibited.
Due to embargo restrictions, sale of this product in Russia, Belarus, Iran, Syria, and North Korea is prohibited.
