This sensor is designed for incremental measurement of rotational speed (e.g. camshaft, crankshaft and wheelspeed).
Due to the rotation of a ferromagnetic target wheel in front of the Mini-HA-P sealed, the magnetic field is modulated at the place of the Hall probe. A Hall-effect sensor element with integrated signal conditioning circuit detects this change and generates a digital output signal.
The main feature and benefit of this sensor is the combination of a high quality production part and a robust design with a very small housing.
- Downloads
- Features
- Application
- Technical Specifications
- Installation Notes
- Ordering Information
- Dimensions
- Legal Restrictions
Downloads
Features
- Max. frequency: ≤ 10 kHz
- Air gap: 0.2 to 1.5 mm
- Bore diameter: 16 mm
- Max. vibration: 1,200 m/s² at 10 Hz to 2 kHz
- Weight w/o wire: 20 g
Application
|
Application |
Speed |
|
Max. frequency |
≤ 10 kHz |
|
Target wheel air gap |
0.2 to 1.5 mm |
|
Temperature range |
-40 to 150°C |
|
Output circuit |
Open collector for 1 kOhm |
|
Output type |
Active low |
|
External magnetic fields |
≤ 0.3 mT |
|
Max. vibration |
1,200 m/s2 at 10 Hz to 2 kHz |
Technical Specifications
Variations
Connector | ASL606-05PC-HE | Without connector |
Mating connector | ASL006-05SC-HE | - |
Pin 1 | US | US (red) |
Pin 2 | Gnd | Sig (green) |
Pin 3 | Sig | Gnd (black) |
Pin 4 | Nc | - |
Pin 5 | Nc | - |
Wire length L | 10 - 27 cm | 27 cm |
Mechanical Data
Weight w/o wire | 19.2 g |
Mounting | With screw 1 x M6 |
Bore diameter | 16 mm |
Installation depth L2 | 12 mm |
Tightening torque | 8 Nm |
Electrical Data
Power supply | 5 to 18 V |
Current IS | 10 mA |
Characteristic
Accuracy repeatability of the falling edge of tooth | < 3 % (≤6 kHz) < 5 % (≤10 kHz) |
Signal output | 0.4 V to < US |
Environment
Target wheel diameter D | 162.34 mm |
Thickness t | 12.5 mm |
Width of teeth b1 | 3.8 mm |
Width of gap b2 | 4.7 mm |
Width of sync. gap b3 | 20.79 mm |
Depth of teeth h | 3.4 mm |
Number of teeth | 60-2 |
Connectors and Wires
Connector | Please see Variations |
Sleeve | HT wire ø 5.2 mm |
Wire size | AWG 20 |
Wire length L | Please see Variations |
Various motorsport and automotive connectors are available on request. | |
Please specify the required wire length with your order. | |
Installation Notes
|
The Mini-HA-P sealed can be connected directly to most control units and data logging systems. |
|
Please avoid abrupt temperature changes. |
|
For mounting please use only the integrated plug. |
|
If a wheel with different dimensions is used (see Environment), the technical function has to be tested individually. |
|
Please ensure that the environmental conditions do not exceed the sensor specifications. |
|
Please find further application hints in the offer drawing at our homepage. |
Safety Note
The sensor is not intended to be used for safety related applications without appropriate measures for signal validation in the application system. |
Ordering Information
Speed Sensor Hall-Effect Mini HA-P sealed
Connector ASL606-05PC-HE
Order number: F02U.V00.500-01
Speed Sensor Hall-Effect Mini HA-P sealed
Without connector
Order number: F02U.V00.570-01

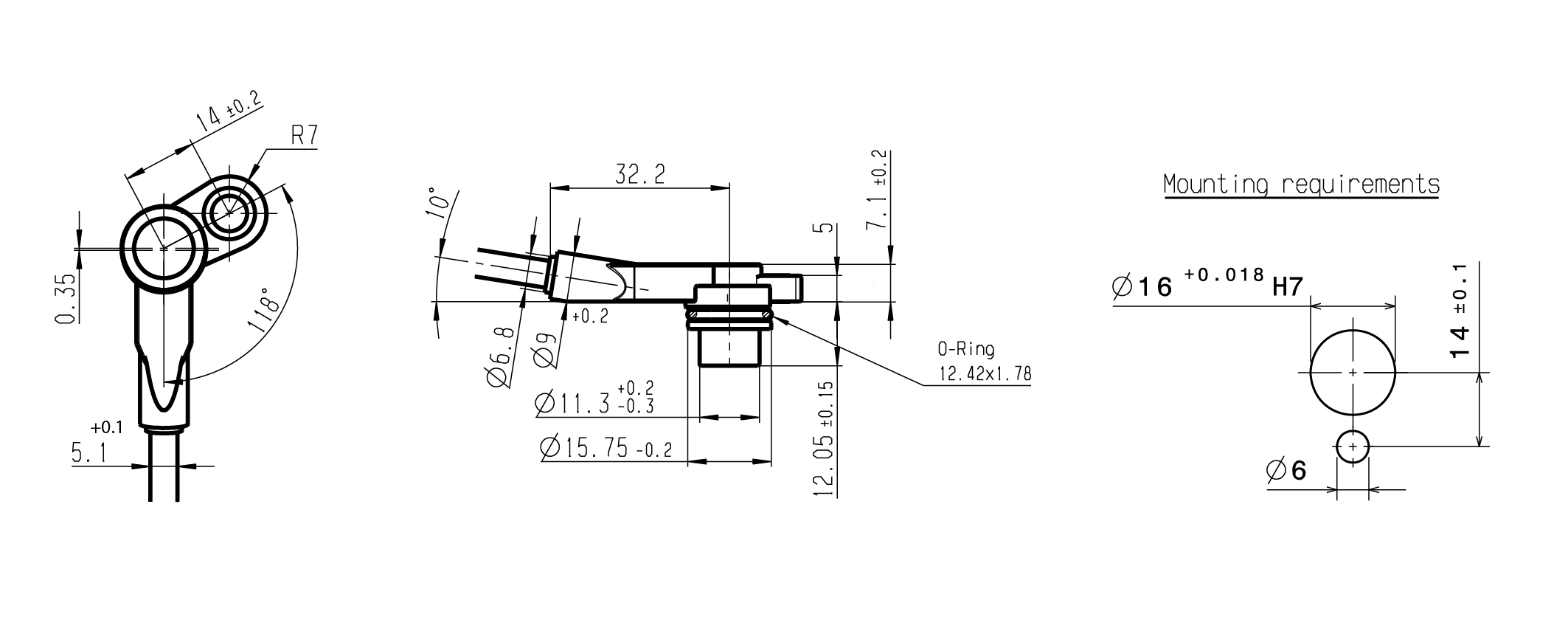

Dimensions
Legal Restrictions
Due to embargo restrictions, sale of this product in Russia, Belarus, Iran, Syria, and North Korea is prohibited.
