Pressure Sensor Combined PST-F 2 350 bar

Application 1

0 to 350 bar

Reference

Absolute

Max. pressure

390 bar

Application 2

-40 to 140°C

Resistance at 25°C

2 kOhm

Operating temp. range

-40 to 140°C

Media temp. range

-40 to 140°C

Storage temp. range

-40 to 60°C

Biofuel compatibility

E26, E85

Max. vibration

210 m/s² RMS at 147 to 1,350 Hz
175 m/s² RMS at 1,350 to 2,000 Hz

Male thread

M10x1

Weight without wire

36 g

Wrench size

27 mm

Installation torque

37.5 ± 2.5 Nm

Sealing

Sealed cone

Power supply U_S

4.75 to 5.25 V

Max power supply U_S max

16 V (18 V for max. 1 h)

Full scale output U_A

0.5 to 4.5 V U_S ratiometric

Current I_S

12 mA

Response time T10/90

Pressure: 0.2 to 0.8 ms
Temperature: 9 s (response time of temperature signal in oil dip bath 20 to 100°C)

Compensated range

-40 to 130°C

Tolerance (FS) at U_S

+/- 1 % at 0 to 100°C
+/- 1.5 % at -40 to 0°C and 100 to 130°C

Sensitivity at U_S = 5 V

11.43 mV/bar

Offset

500 mV at U_S = 5 V

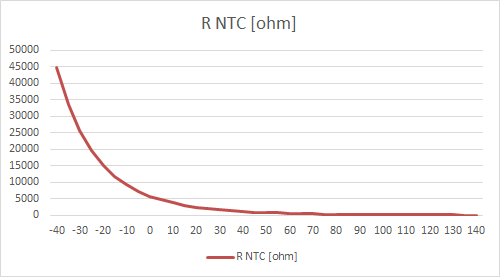

T [°C]

R [Ohm]

-40

44,864

-30

25,524

-20

15,067

-10

9,195

0

5,784

10

3,740

20

2,480

25

2,038

30

1,683

40

1,167

50

825

60

594

70

434,9

80

323,4

90

244

100

186,6

110

144,5

120

113,3

130

89,8

140

71,9

Connector

Bosch Trapezoid

Mating connector

F02U.B00.751-01

Pin 1

-

Pin 2

Temperature Signal

Pin 3

Ground

Pin 4

Pressure Signal

Pin 5

Power Supply

Various motorsport and automotive connectors are available on request.

The sensor can be connected directly to most control units.

For temperature measurement please use a pull-up resistor with an optimal value of 4.6 kOhm.

The sensor has a protection for overvoltage, reverse polarity and short-circuit.

Please find further application hints in the offer drawing and free download of the sensor configuration file (*.sdf) for the Bosch Data Logging System at our homepage.
