Ignition Coil P65-T

Spark energy

≥ 65 mJ

Primary current

≤ 7.0 A

Operating temperature range at outer core

-40 to 140°C

Storage temperature range

-40 to 140°C

Max. vibration

≤ 480 m/s² at 5 to 2,000 Hz

Length

143 mm

Weight

223 g

Mounting

Screw fastening

Fits to spark plugs with a ceramic diameter of 10 mm

Primary resistance with wire

Incapable of measurement

Secondary resistance

Incapable of measurement

High voltage rise time

≤ 1.4 kV/µs

Max. high voltage at
1 MOhm || 10 pF

≤ 33 kV

Spark current

≤ 70 mA

Spark duration at 1 kV || 1 MOhm

≤ 1.85 ms

Noise suppression

Inductive and 1 kOhm resistance

Integrated suppression diode / EFU

Integrated power stage

Measured with power stage

BIP 385

Connector

Tyco 0-1488991-1

Mating connector

F02U.B00.555-01

Pin 1

ECU ignition signal

Pin 2

ECU GND

Pin 3

U_batt

U _batt

I primary

5.0 A

5.5 A

6.0 A

6.5 A

7.0 A

7.5 A

Max.
1000
/min

10

9

8

7

6

5

6 V

10.7

11.6

8 V

4.7

5.4

6.8

8.3

10.2

10 V

3.1

3.55

4.25

4.87

5.6

6.3

12 V

2.32

2.66

3.12

3.51

3.94

4.36

14 V

1.86

2.1

2.45

2.75

3.07

3.36

16 V

1.55

1.77

2.03

2.26

2.51

2.73

16.5 V

1.49

1.7

1.95

2.17

2.40

2.61

18 V

1.34

1.51

1.73

1.92

2.13

2.31

20 V

1.16

1.33

1.51

1.67

1.85

2.0

24 V

0.93

1.05

1.19

1.32

1.45

1.57

Measured values are without loom resistance. Loom resistance must be less than the primary resistance. The needed dwell time is to be verified through current measurement

I prim.

Spark energy

-duration

-current

Hi voltage

5 A

33.7 mJ

1.37 ms

50 mA

24.4 kV

5.5 A

42 mJ

1.54 ms

54 mA

27.0 kV

6 A

48.9 mJ

1.62 ms

59 mA

29.1 kV

6.5 A

55.9 mJ

1.74 ms

63 mA

31.2 kV

7 A

63.6 mJ

1.85 ms

68 mA

33.2V

7.5 A

71.9 mJ

1.92 ms

73 mA

34.7 kV

During mounting of the spark plug please pay attention that full clamping and proper contacts are made to ensure safe connection between coil and spark plug.

The coil P65-T has an integrated transistor and requires an ECU with internal ignition drivers with 10 to 20 mA current output.

For technical reasons the values of the coils may vary.

Please regard the specified limit values.

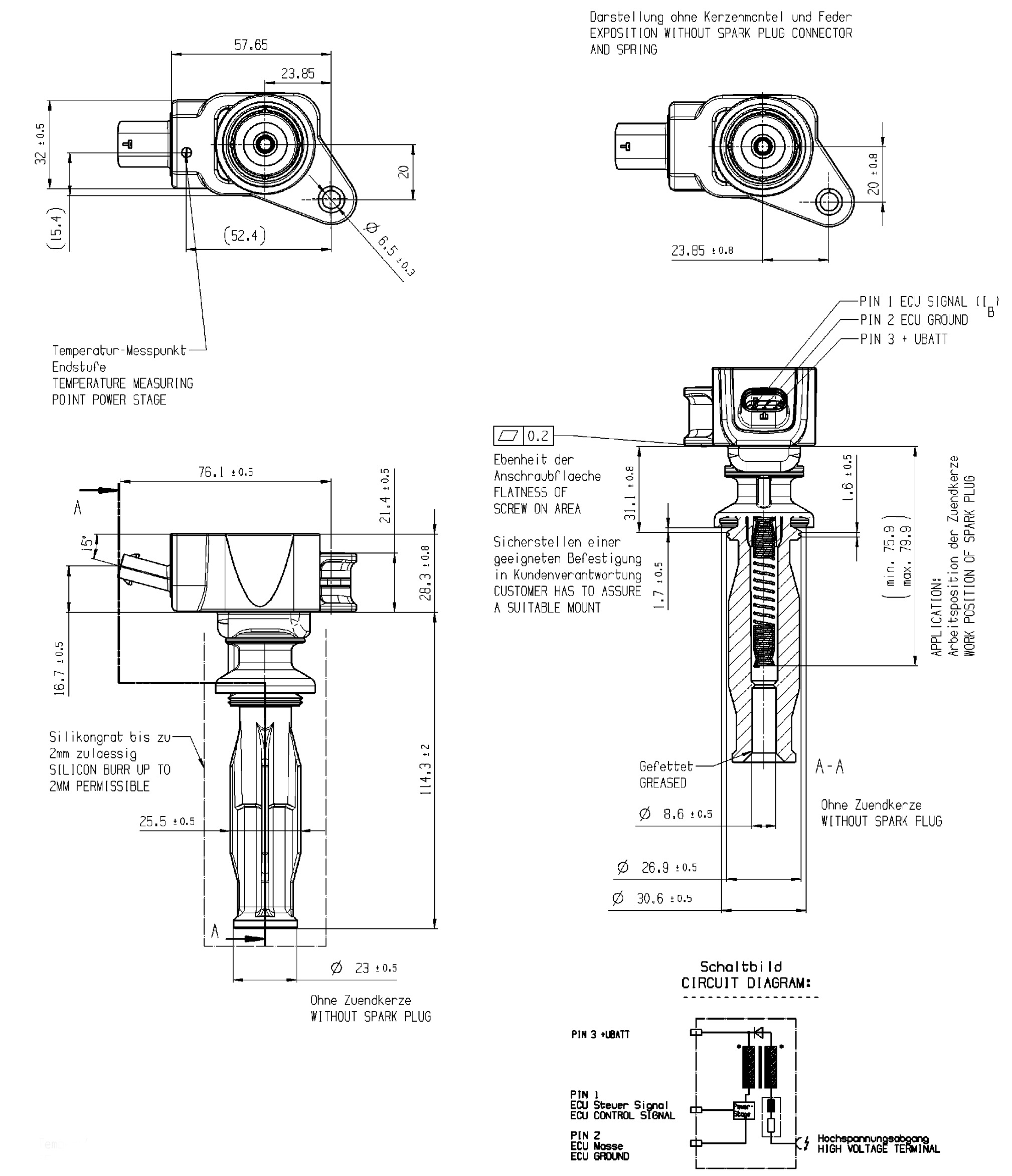

Please find further application hints in the offer drawing at our homepage.

In case of ignition-caused malfunctions, please use screened sensor wires.
